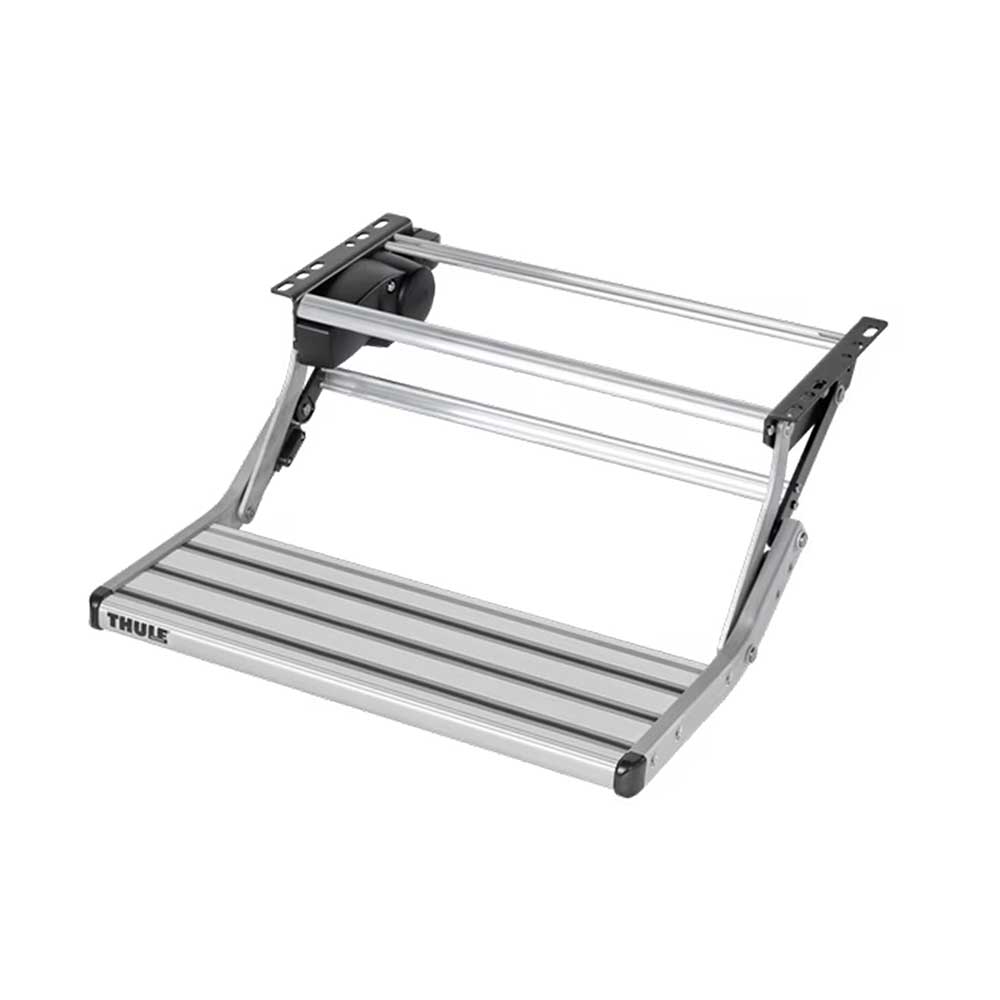

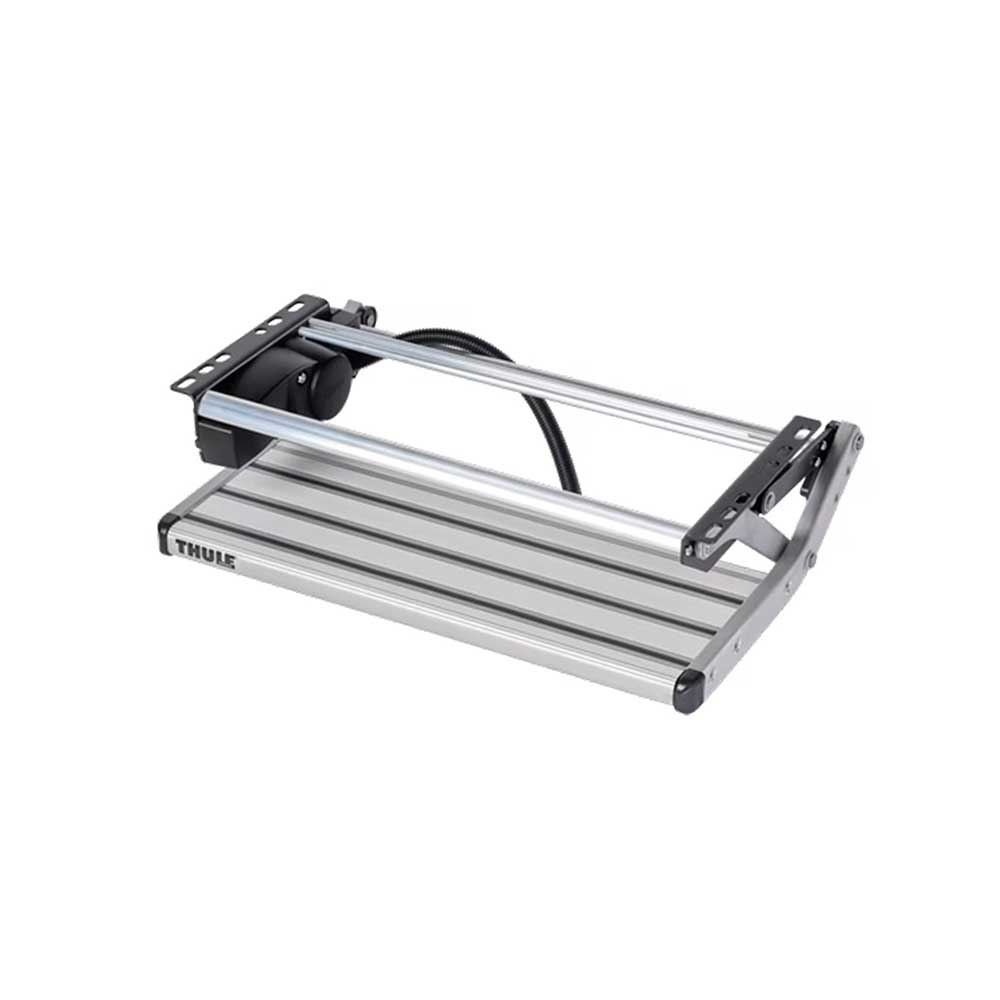

12V Electric Single RV Step - Aluminum Pull Out Folding Step for Caravan & Motorhome

Features

• Strong & Reliable Construction – Made from high-strength, non-slip aluminium profiles with black anodised sand-blast surface for long-lasting durability.

• Manual Operation – Step must be manually opened and withdrawn for maximum control and safety.

• Anti-Slip Design – Ribbed aluminium tread ensures excellent grip, even in wet conditions.

• Heavy-Duty Capacity – Supports up to 200 kg maximum load.

• Water-Resistant Surface – Specially treated aluminium profile resists corrosion and water ingress.

• Easy Installation – Can be connected directly to the chassis or fixed to the vehicle floor.

• Safety Reminder – Do not use the footstep until it is fully opened to avoid damage.

Specifications

• Model: AZT-ALTB11-ES

• Type: RV Single Electric Step (Manual Extend/Retract)

• Material: High-strength aluminium + black anodised frame

• Surface Finish: Sand-blasted and anodised for corrosion resistance

• Max Load: 200 kg

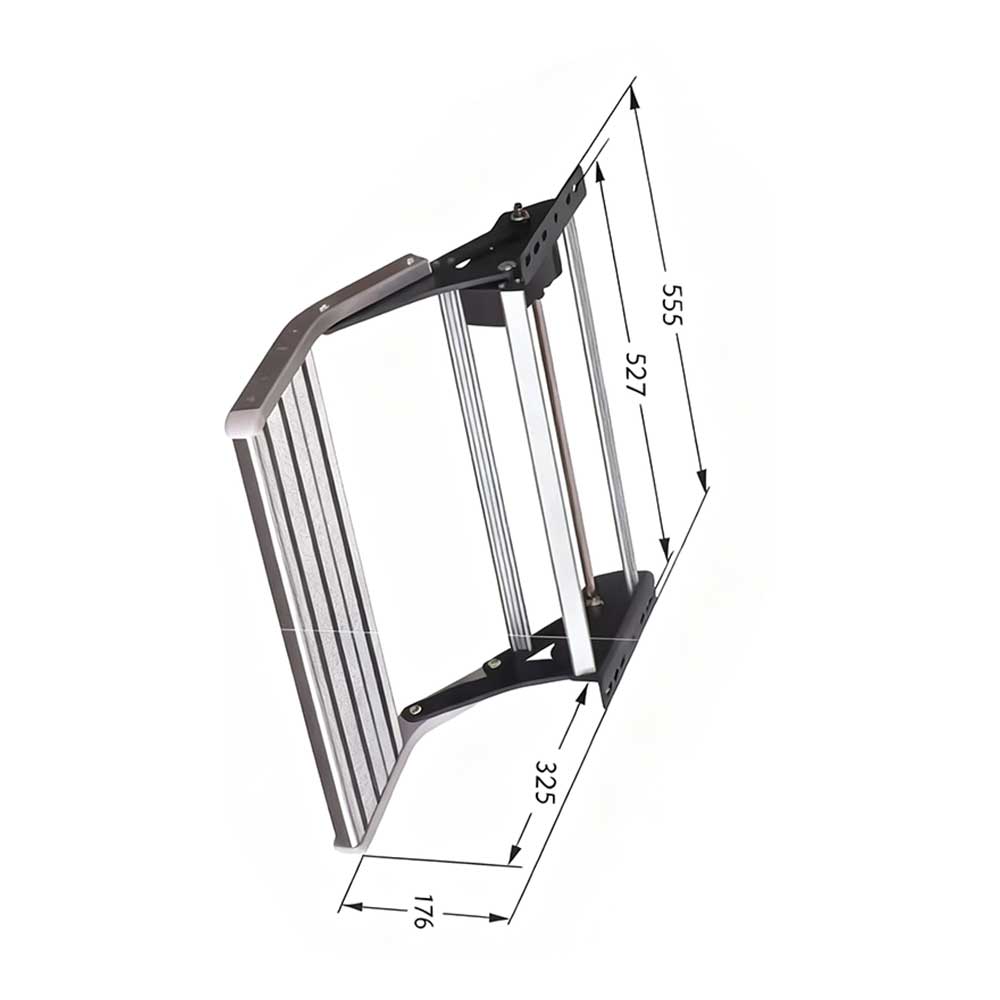

• Step Width: 527 mm

• Total Width: 555 mm

• Depth (Extended): 325 mm

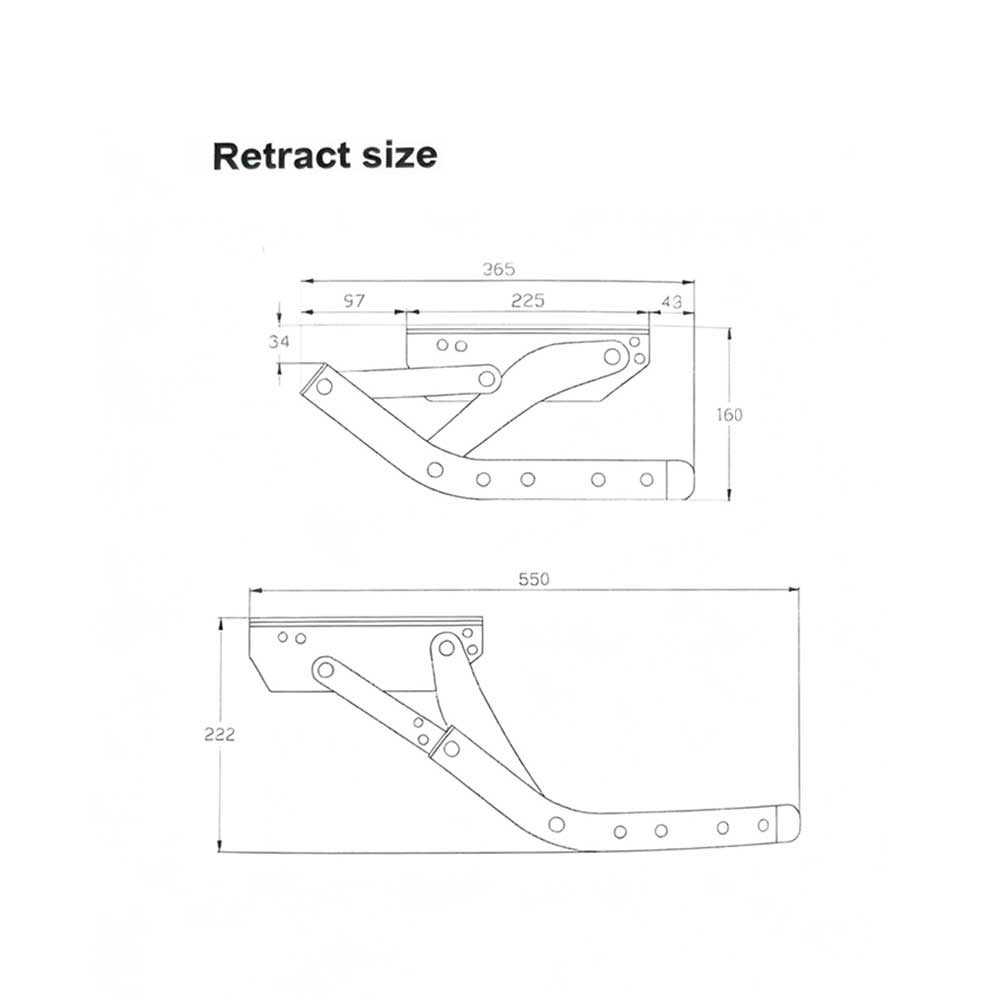

• Height (Retracted): 176 mm

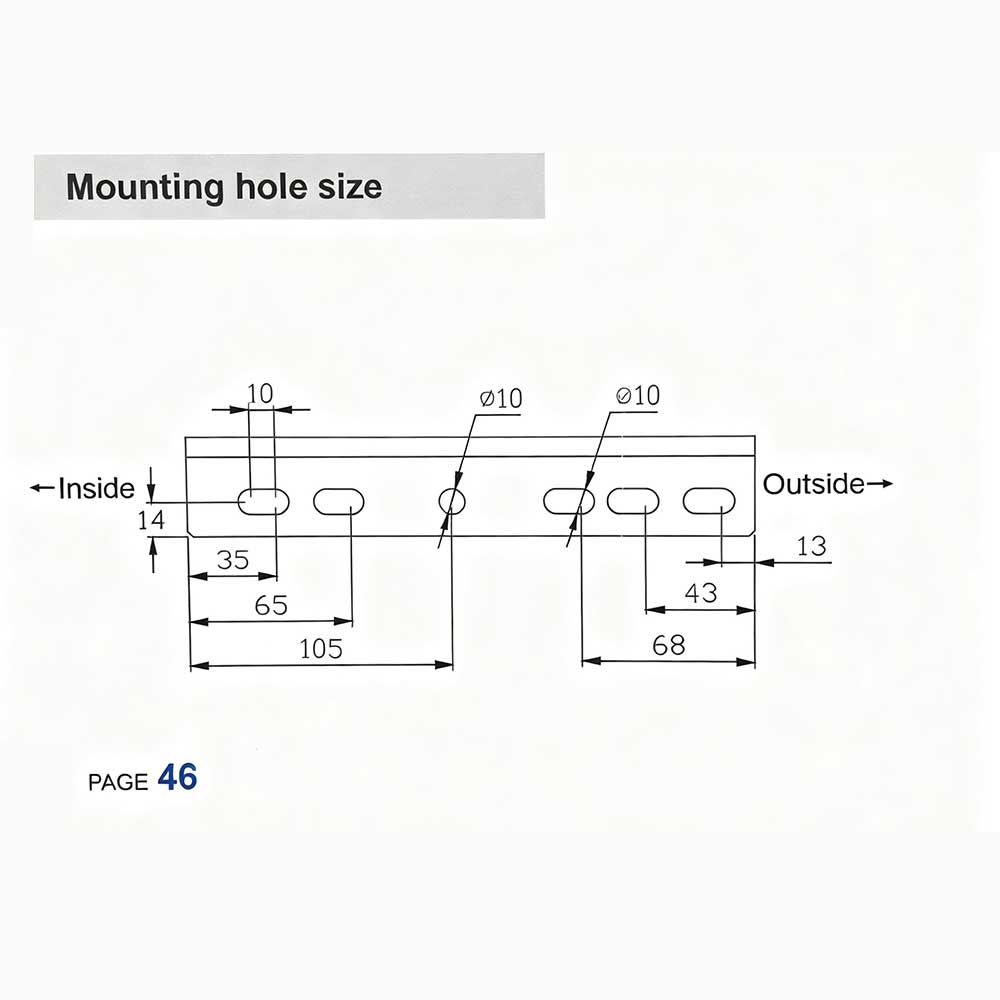

• Mounting Hole Spacing:

  • Inside holes: 105 mm apart (Ø10 mm)

  • Outside holes: 68 mm apart (Ø10 mm)

• Mounting Plate Depth: 222 mm

• Weight: Approx. 7–8 kg

• Colour: Black with silver aluminium step

Package Includes

• 1 × RV Single Electric Step (AZT-ALTB11-ES)

• Mounting hardware
