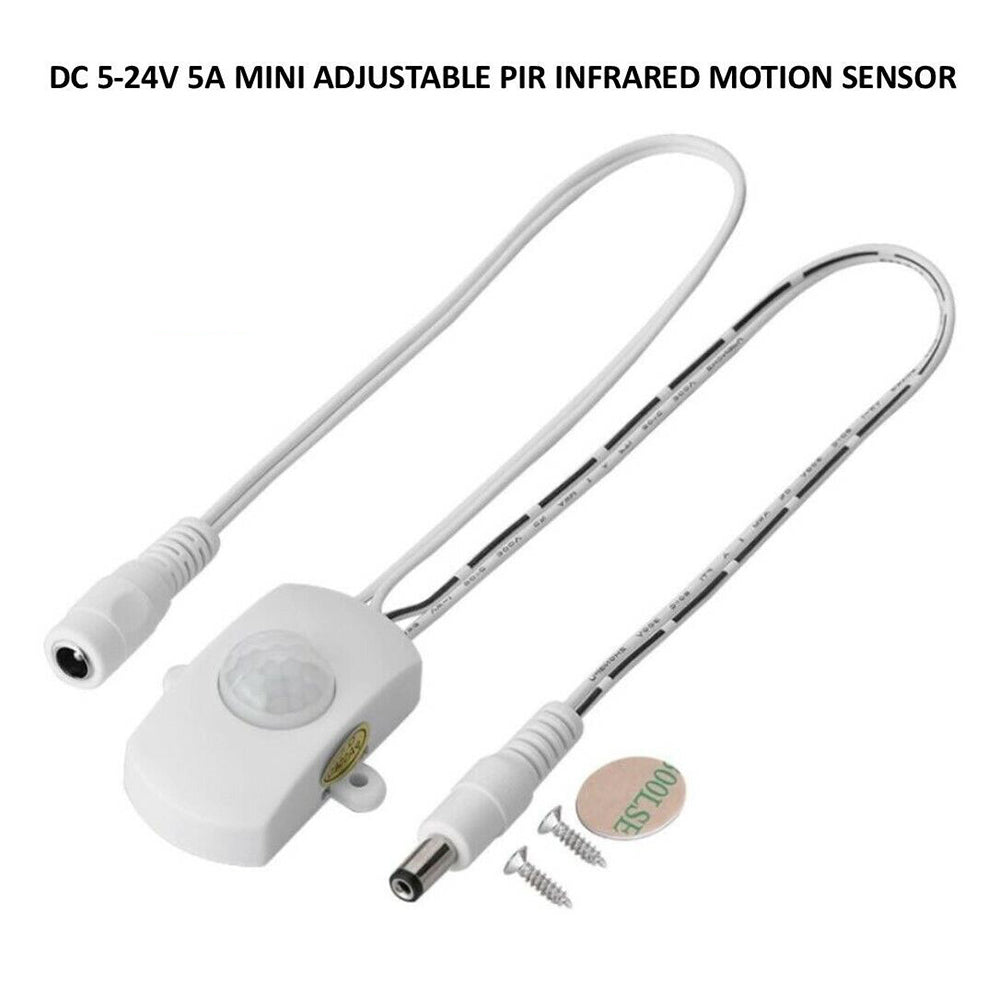

PIR MOTION SENSOR DETECTOR ACTIVATED ON OFF SWITCH LED STRIP LIGHT BAR CAMPING

Description:

This switch with PIR Infrared Motion sensor detector, can be used in corridors, bathrooms, basements, warehouses, garages and other places to achieve electrical automatic control functions. High and stable sensitivity effectively save energy and money for you.

Features:

PIR motion sensor can detect human movement by detecting infrared ray emitted by human body.

120 degrees cone angle detecting range and detecting distance is up to 5-7m. High and stable sensitivity, effectively save energy and improve efficiency.

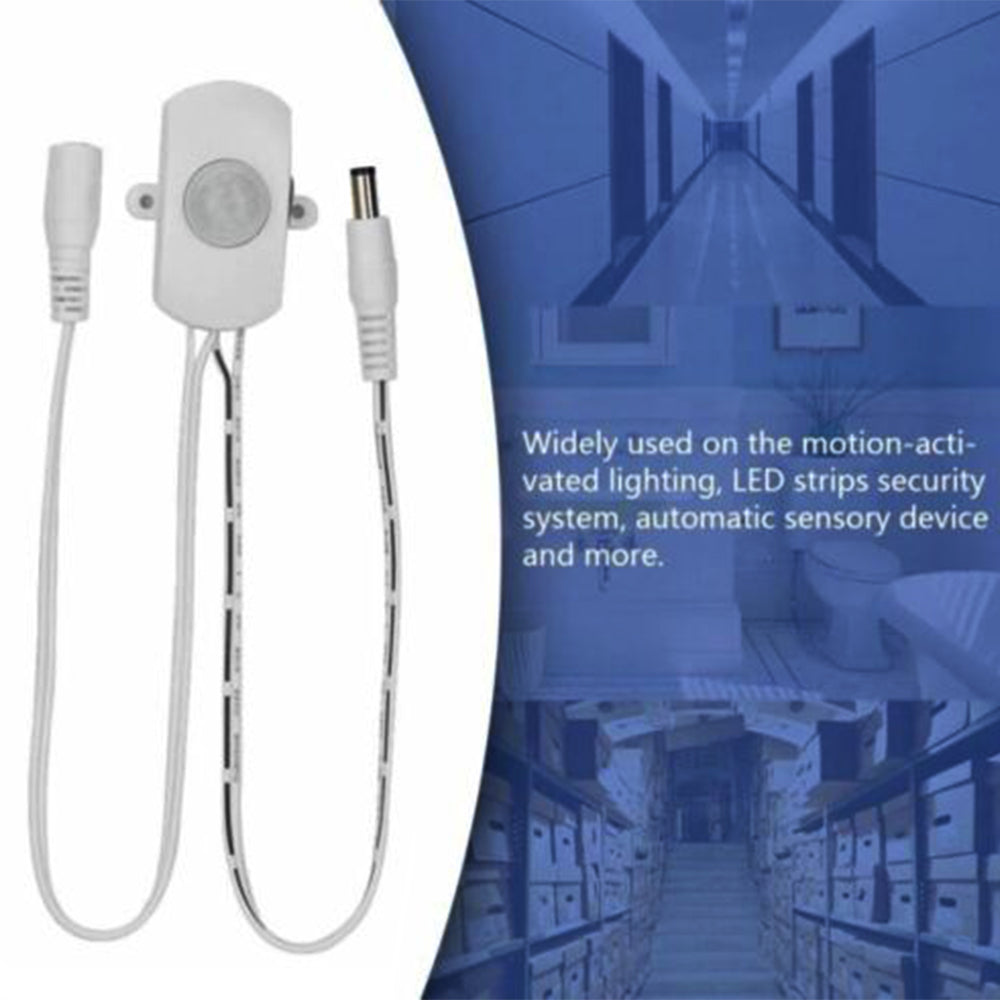

Widely used on the motion-activated lighting, LED strips security system, automatic sensory device and more.

2-360 seconds adjustable delay range for you to choose a suitable time.

Output voltage is equal to input voltage, low power consumption.

Specifications:

Colour: White

Operating voltage: 5V-24VDC (wide voltage)

Working temperature: -20 °C ~ +38 °C

Quiescent current: < 50uA

Output current: 5A

Trigger mode: Continuous trigger

Output Mode: Inductive Output

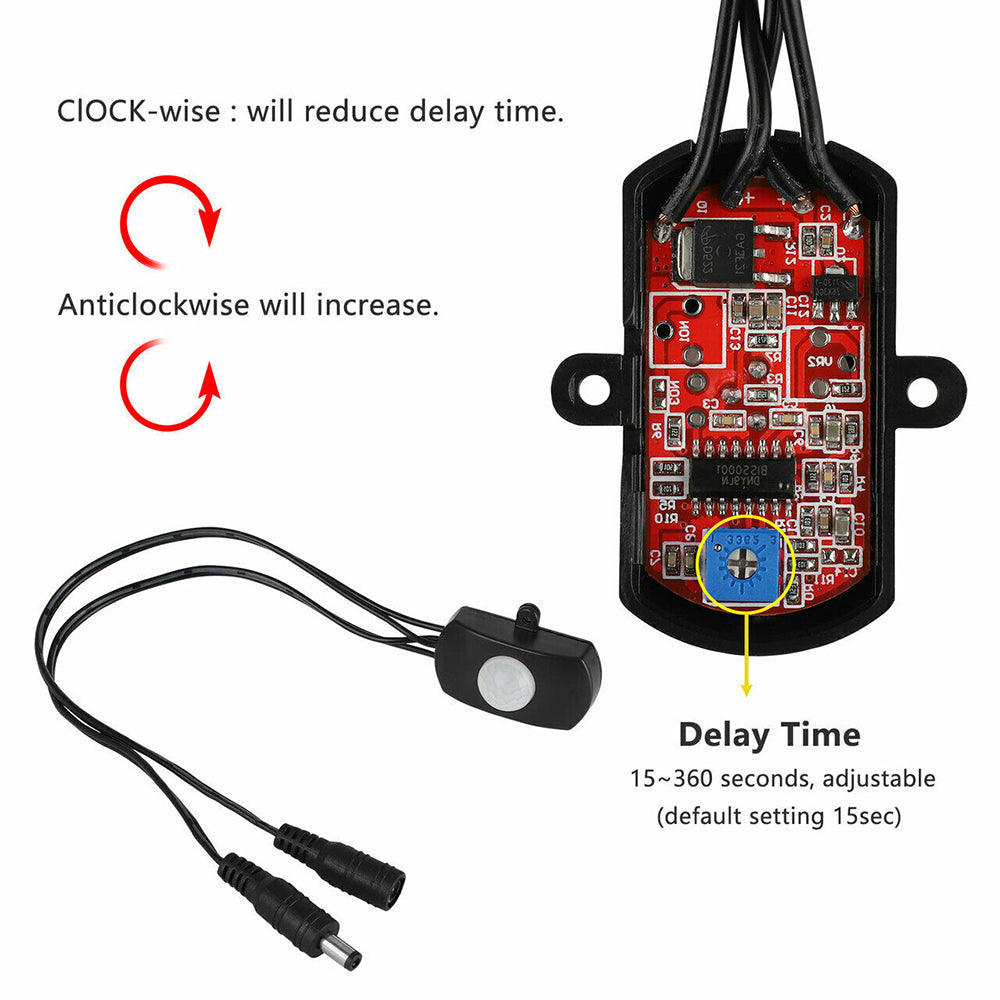

Delay range: Default setting 15S (10-360 seconds adjustable)

Induction mode: passive

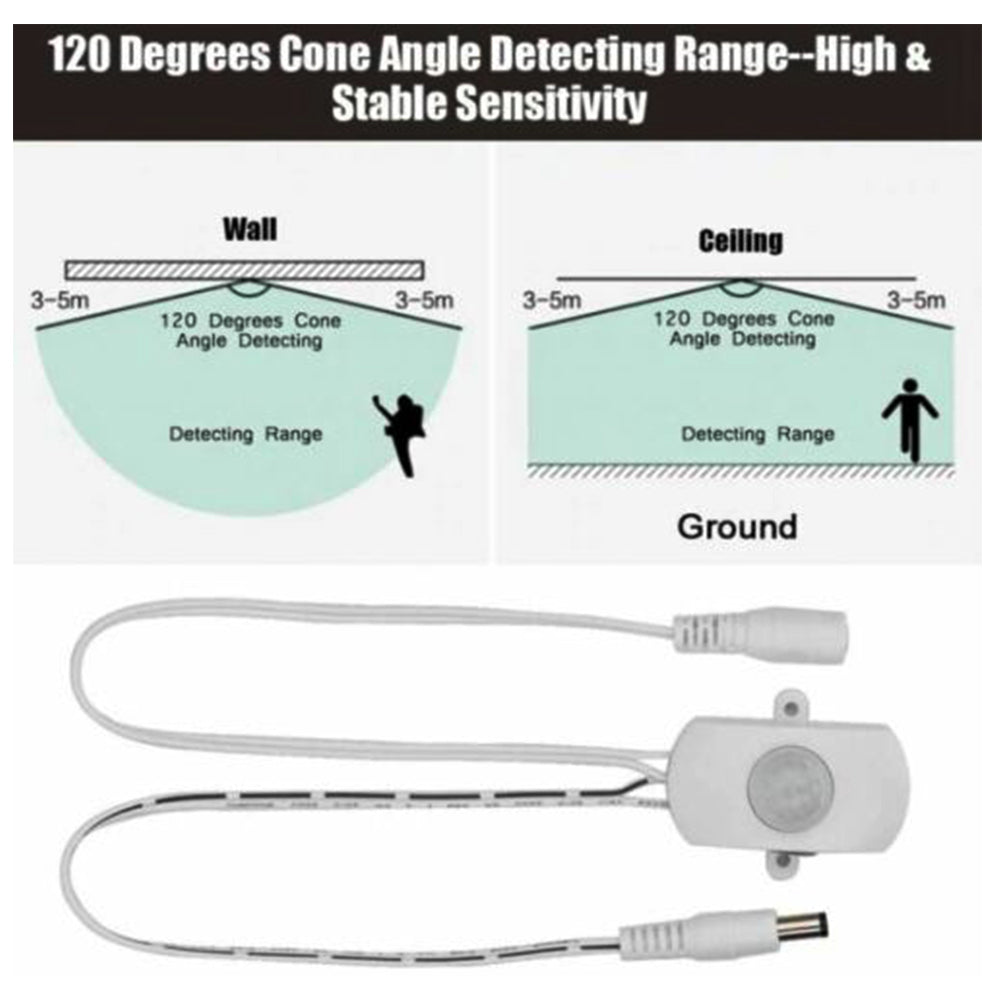

Sensing angle: 120-degree cone angle

Sensing distance: 5-7m

Size: 50*40*22.5mm/1.97*1.57*0.87inch

Package include

1X White USB light and sensor
