Product Overview

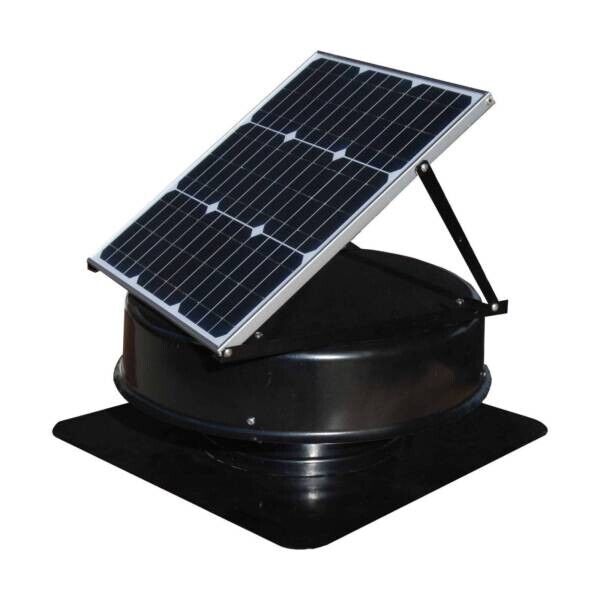

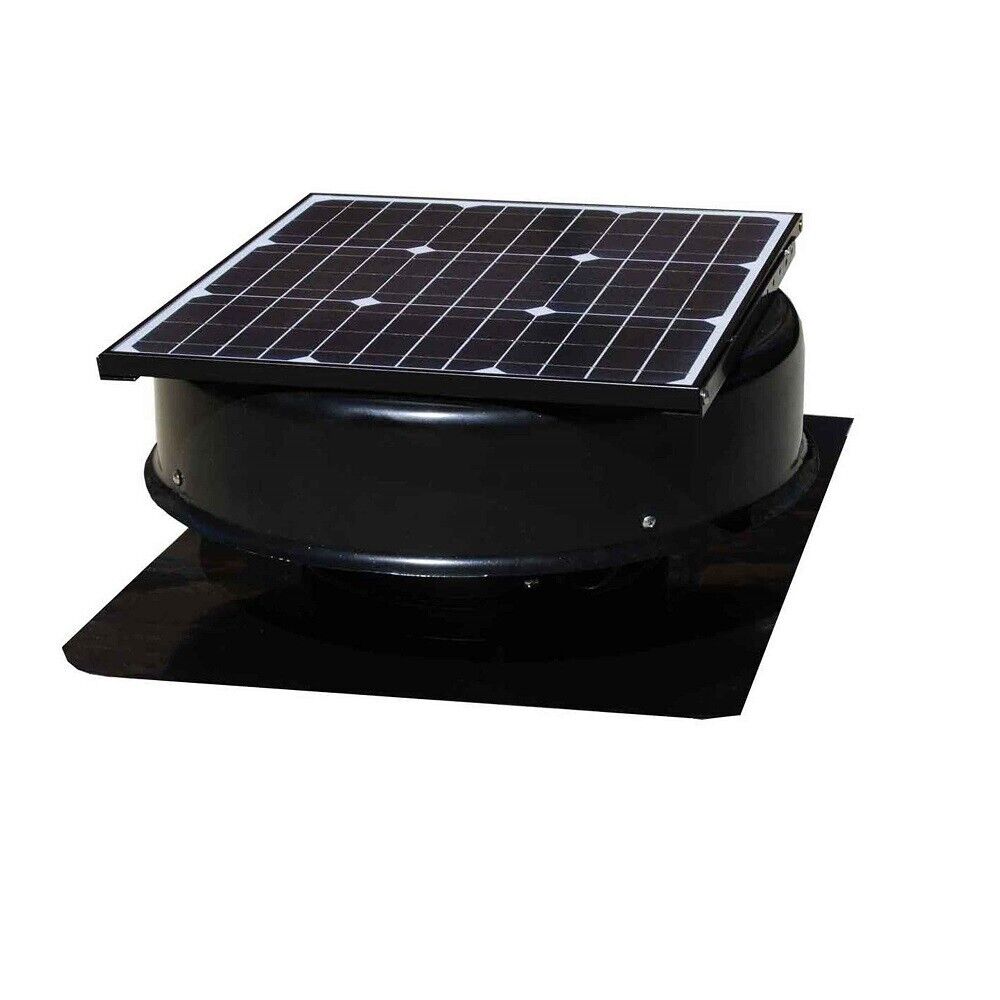

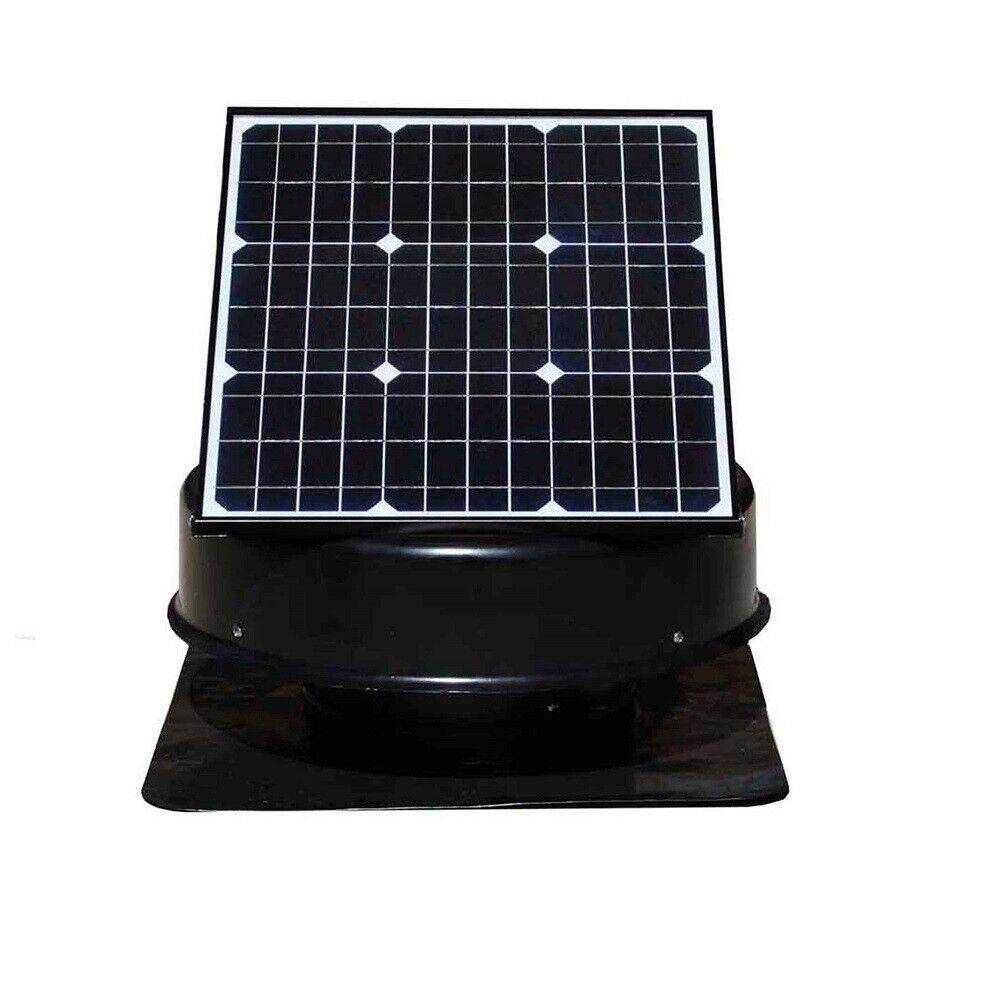

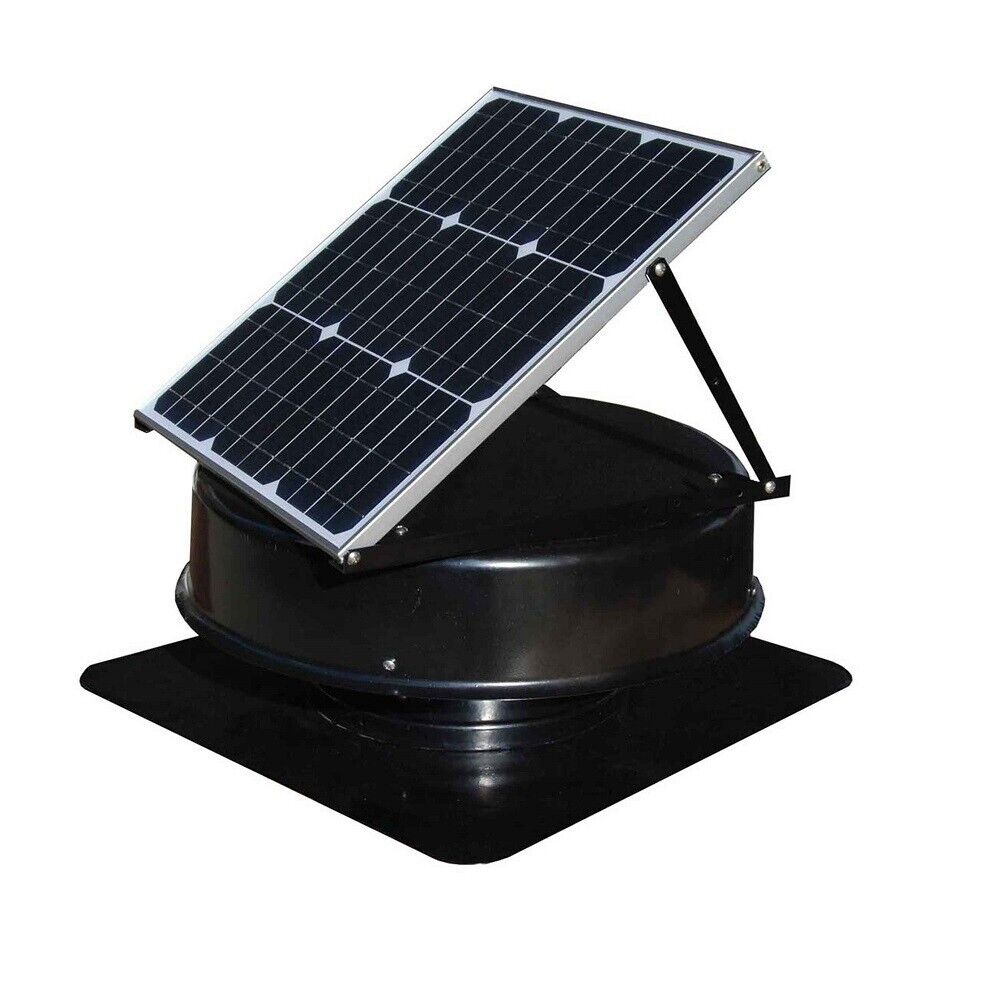

Keep your roof space cooler and better ventilated with the SolarKing 320mm V4 Solar Roof Ventilation Fan.

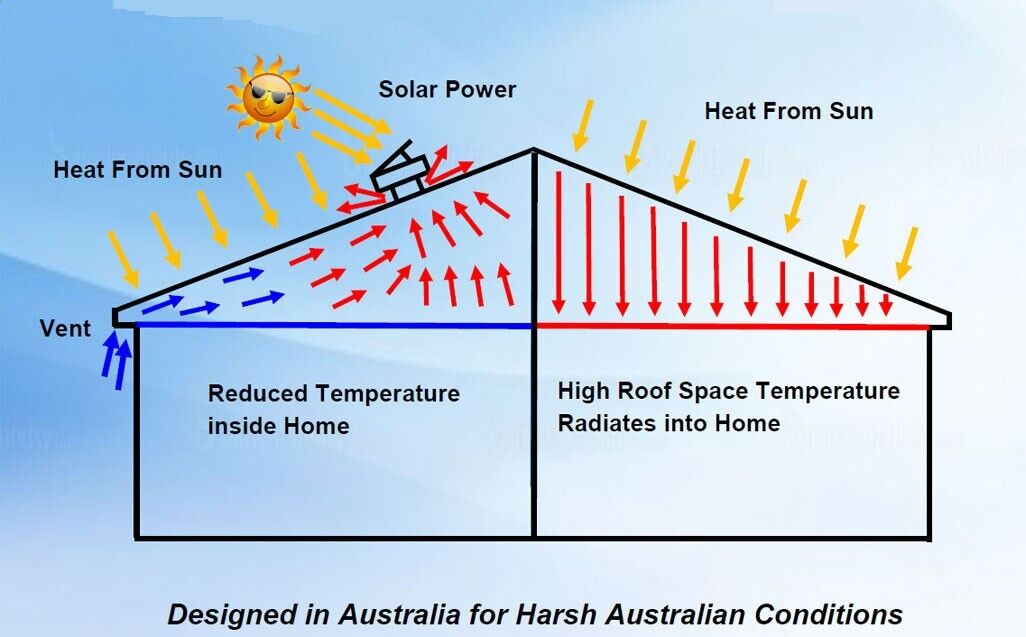

Designed for Australian conditions, this powerful solar-powered roof fan extracts hot air from the roof cavity and replaces it with cooler outside air, helping reduce heat transfer into your home or workplace.
With airflow of up to 2100m³ per hour, the SolarKing can extract significantly more air than a conventional wind-driven whirlybird. Its built-in thermostatic control automatically stops the fan when the roof temperature falls below approximately 25°C, helping retain warmth during cooler months.
Powered by a 42W monocrystalline solar panel, there are no normal electricity running costs during solar operation. The efficient brushless DC motor provides quiet, reliable performance with noise levels below 45dBA. Solarking
Features
- Powerful 2100m³/h airflow
- 42W monocrystalline solar panel
- Helps reduce roof temperatures by up to 30°C
- Extracts up to 20x more air than a wind-driven whirlybird
- Solar powered – no electricity running costs during normal solar operation
- Automatic thermostatic control
- Automatically switches off below approximately 25°C ±5%
- Efficient 35W brushless DC motor
- Constant-speed motor design for stable operation
- Quiet operation – less than 45dBA

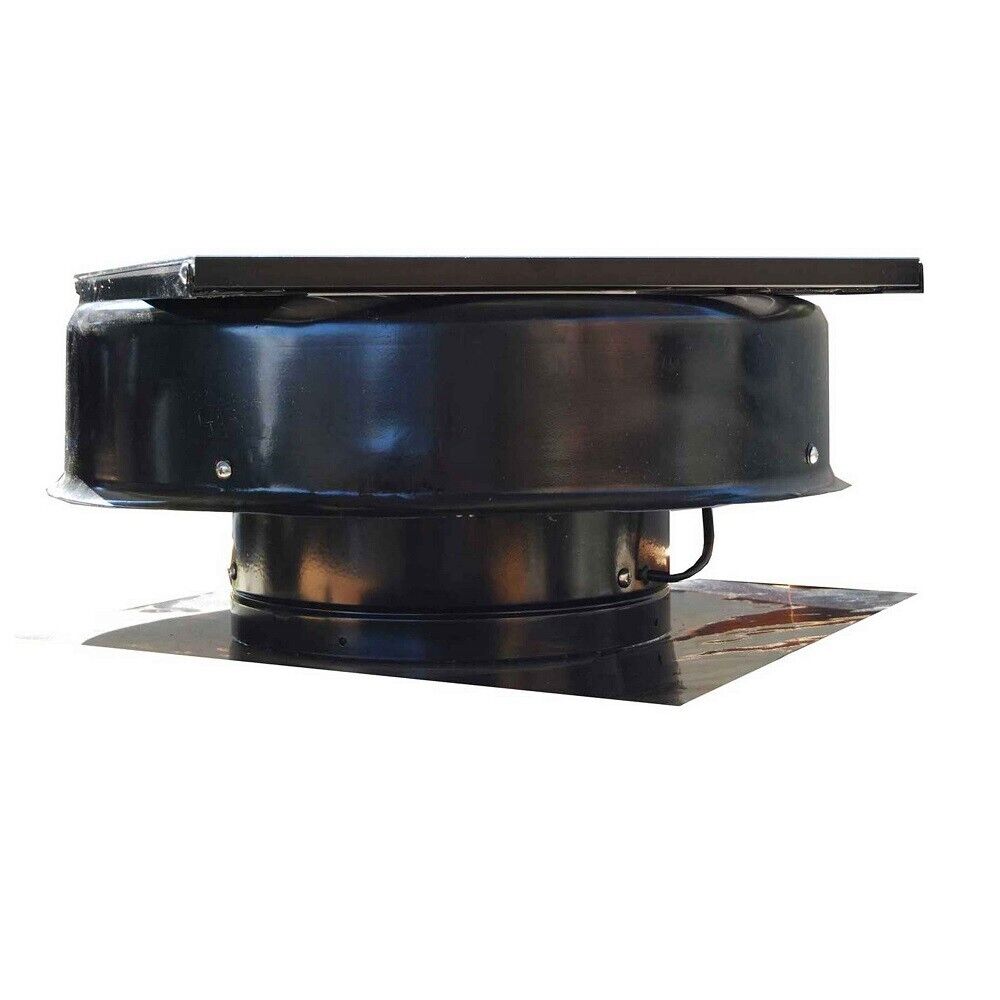

- Free-airflow design with internal air deflection cone
- Helps reduce heat load on ducted air-conditioning systems
- Aluminium top cover and flashing
- Electroplated steel body and brackets for improved corrosion resistance
- Stainless-steel fasteners

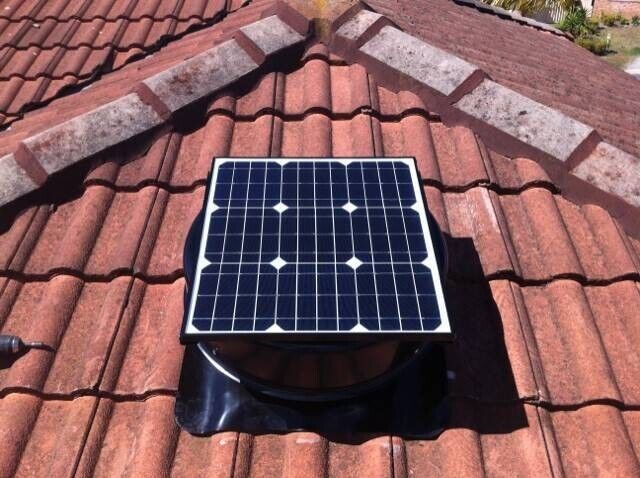

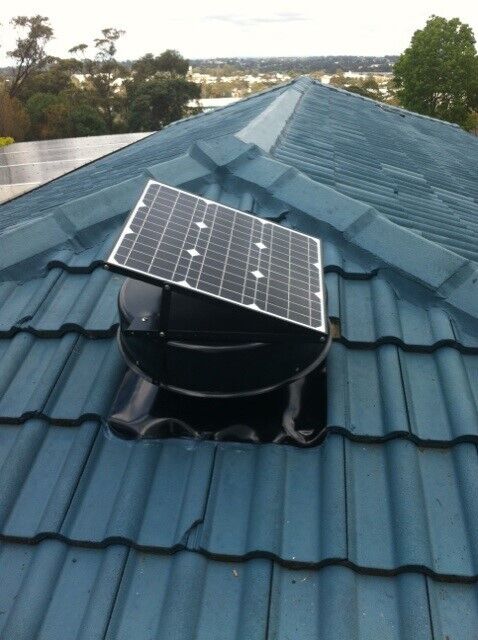

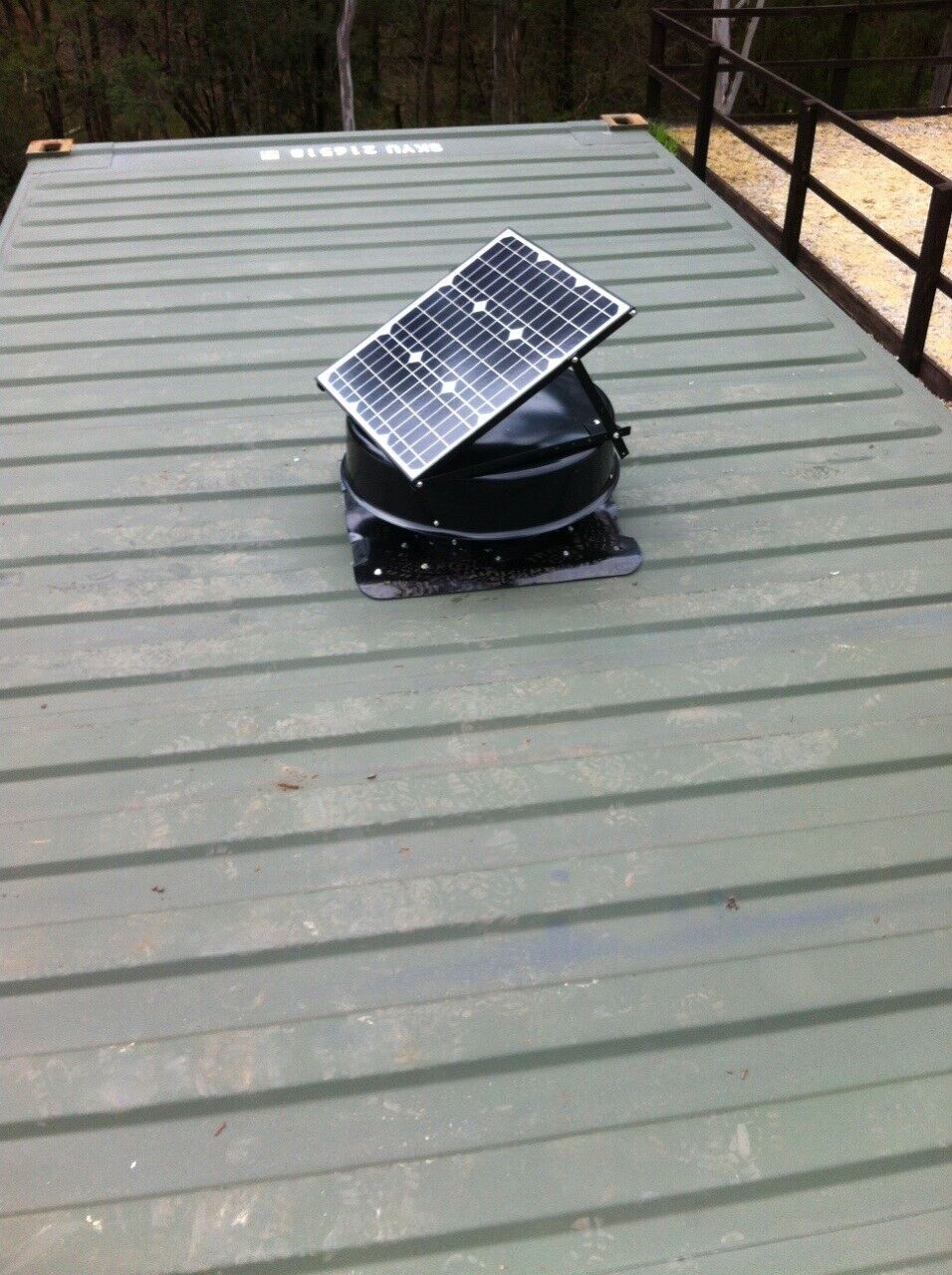

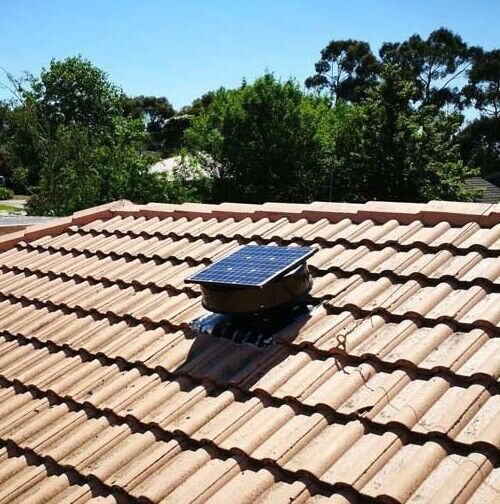

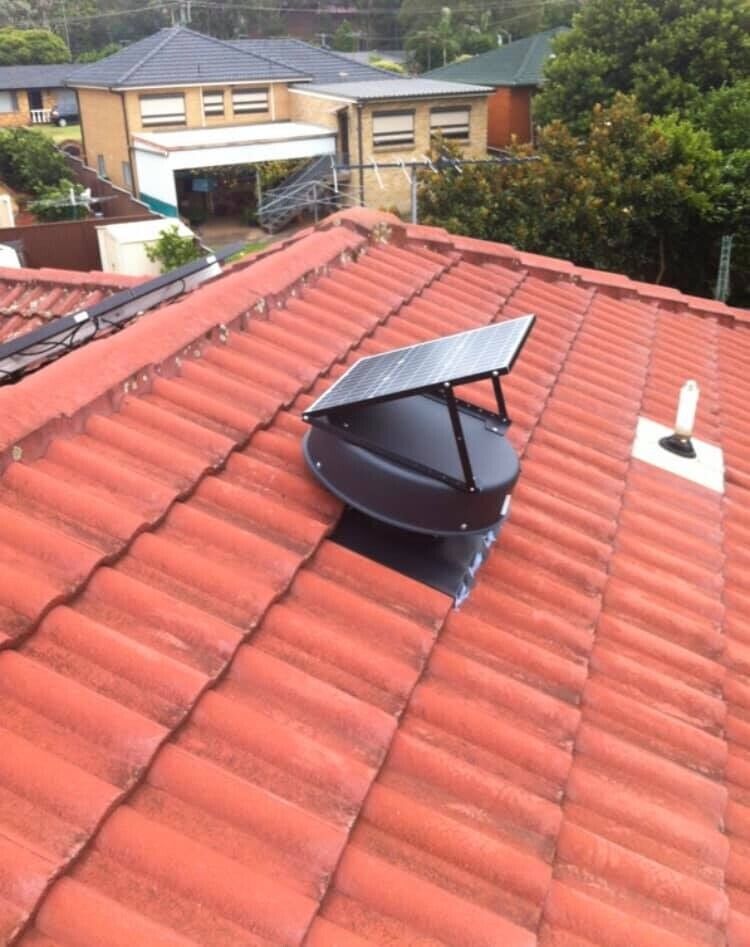

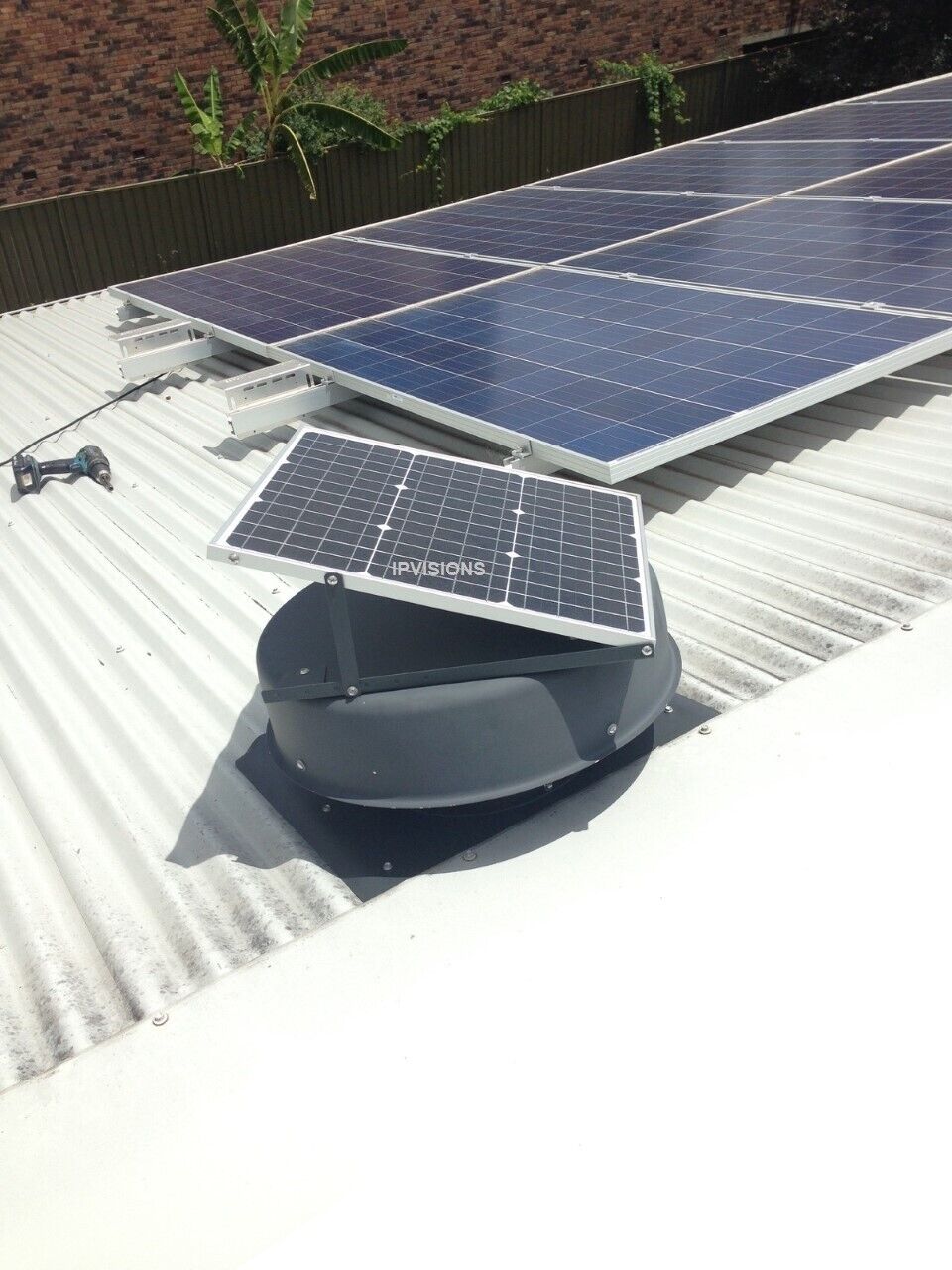

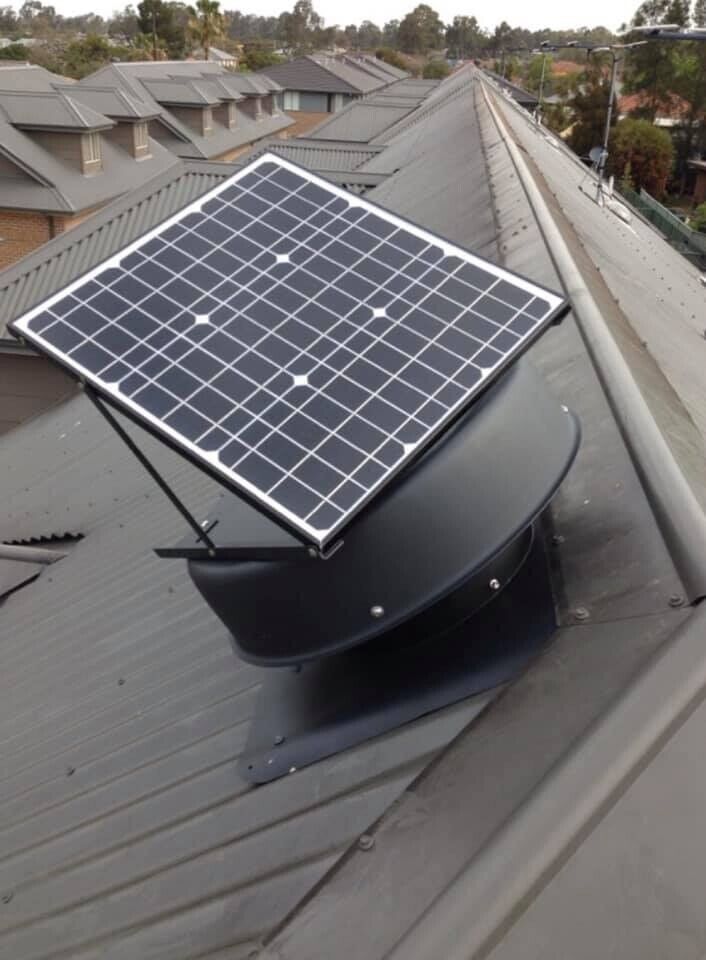

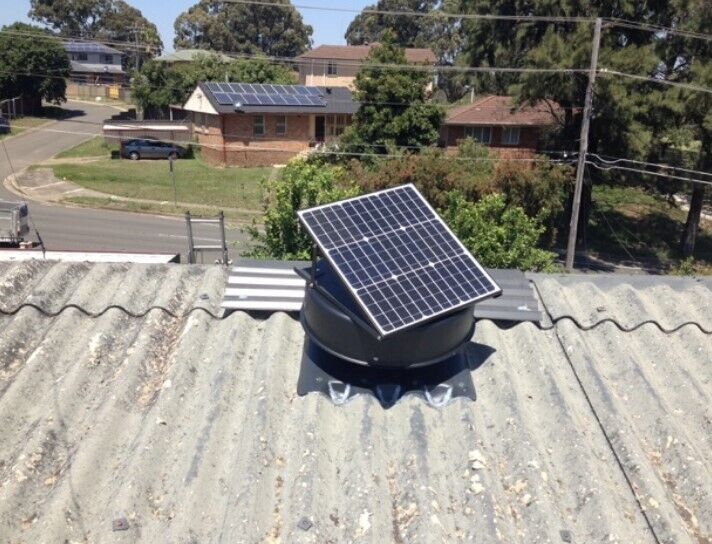

- Suitable for Tile, Colorbond and Flat Roofs

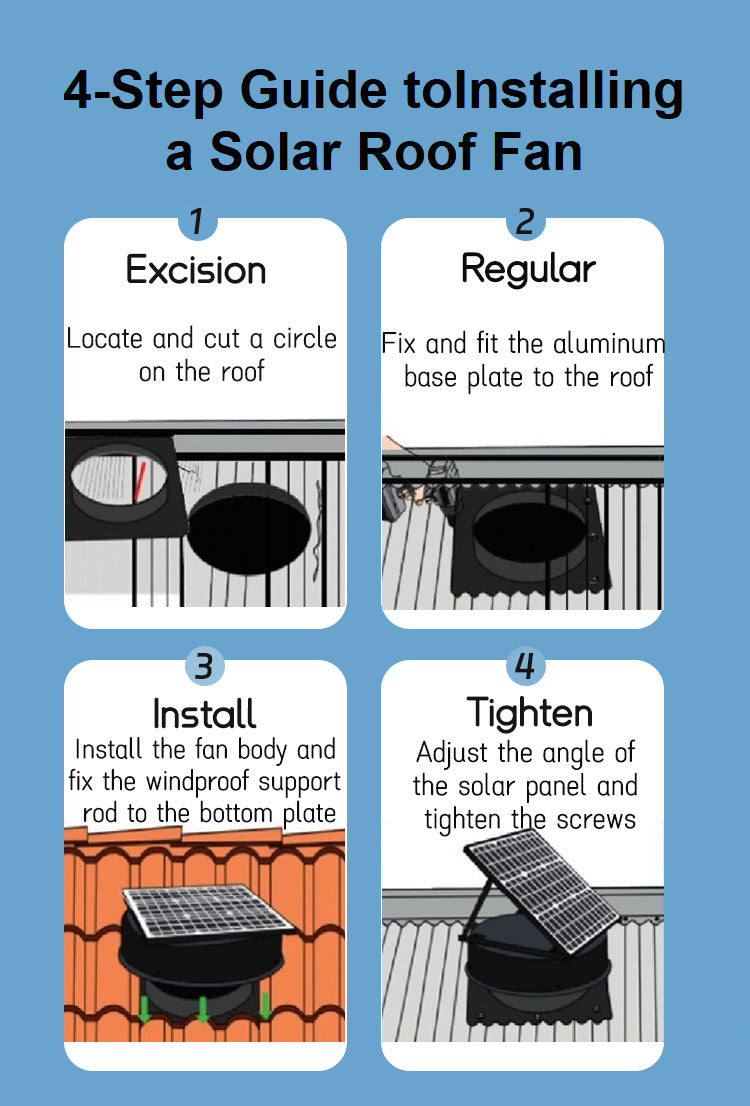

- Easy installation – no electrician required for standard solar operation
- Optional 15V/240V power pack compatible for operation when solar input is unavailable
- Australian owned and operated brand
-
3 Year Warranty
Solarking
Specifications
| Specification |
Details |
| Model |
320MM SRVFW V4 Standard |
| Airflow Capacity |
2100m³/hour |
| Motor |
35W Brushless DC |
| Motor Voltage |
6–19VDC |
| Maximum Speed |
1600 RPM |
| Solar Panel |
Monocrystalline PV |
| Solar Panel Output |
42W / 15VDC |
| Solar Panel Construction |
Heavy-duty frame, 3mm tempered glass |
| Fan |
300mm balanced 5-blade metal fan |
| Noise Level |
<45dBA |
| Auto Shut-Off |
<25°C ±5% |
| Product Dimensions |
565 × 565 × 260mm |
| Flashing Dimensions |
565 × 565 × 1mm |
| Product Weight |
8.0kg |
| Colour |
Black Powder Coated |
| Packed Dimensions |
580 × 570 × 282mm |
| Packed Weight |
9.6kg |
| Warranty |
3 Years |
Package Includes
1 × SolarKing 320mm V4 Solar Roof Ventilation Fan
1 × Roof Flashing
2 × Rafter/Batten Metal Straps
1 × Instruction Manual
1 × Colour Gift Box
Optional 15V/240V power supply is not included and is available separately
